ماژول کاهنده XL4015+Current Mode

• Specification
• Input voltage range:4～38VDC(Note:input voltage not exceeding 38V)
• Output voltage range:1.25-36VDC adjustable
• Output current: 0-5A
• Output power: 75W
• High efficiency up to 96%
• Built in thermal shutdown function
• Built in current limit function
• Built in output short protection function (limiting current 8A)
• Input reverse polarity protection: None (if required, high current diode in series with the input).

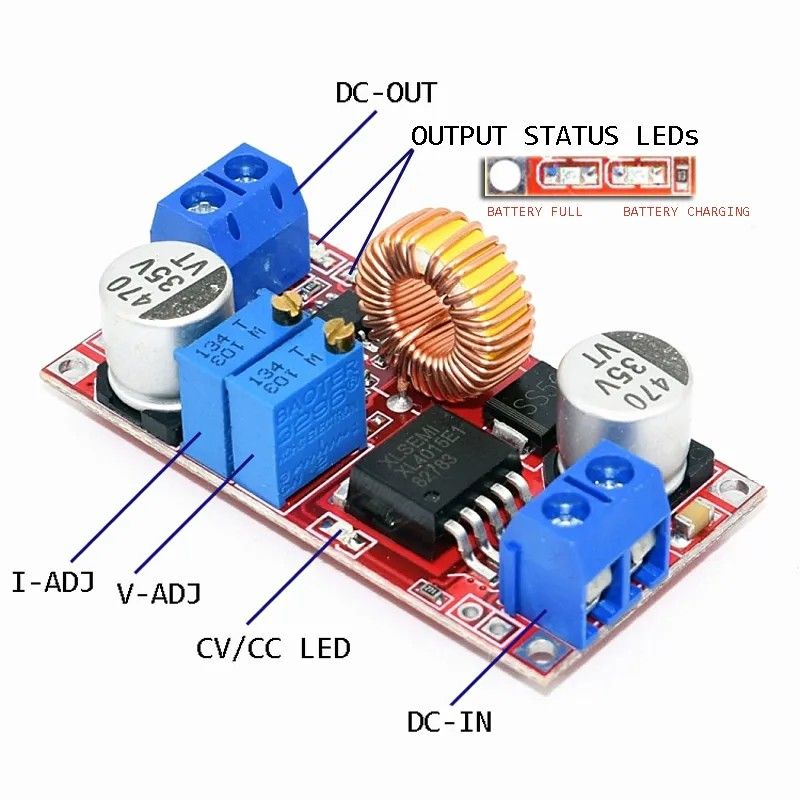

• Connect way: Terminal or solder terminals, V-IN is input, V-OUT is output
• L x W x H = 61.7 * 26.2 * 15mm

COD502-2054
