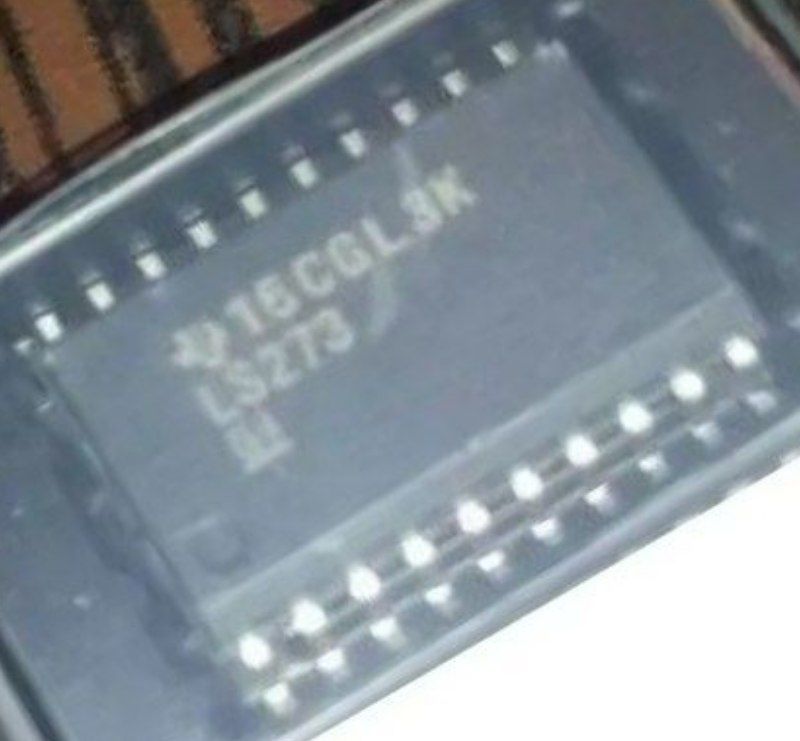

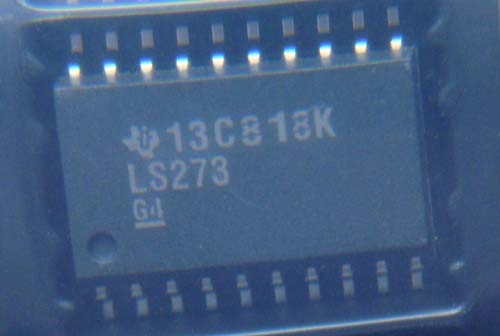

74LS273 – SMD

Product Category: Flip-Flops
Manufacturer: Texas Instruments
RoHS: RoHS Compliant Details
Number of Circuits: 8
Logic Family: LS
Logic Type: D-Type Flip-Flop
Polarity: Non-Inverting
Input Type: TTL
Output Type: TTL
Propagation Delay Time: 27 ns
High Level Output Current: – 0.4 mA
Low Level Output Current: 8 mA
Supply Voltage – Max: 5.25 V
Maximum Operating Temperature: + 70 C
Mounting Style: Through Hole
Package/Case: SOW-20
Packaging: Tube
Brand: Texas Instruments
Function: Octal
Height: 4.57 mm
Length: 24.33 mm
Minimum Operating Temperature: 0 C
Number of Channels: 8
Number of Input Lines: 2
Number of Output Lines: 1
Operating Supply Voltage: 5 V
Operating Temperature Range: 0 C to + 70 C
Reset Type: Master Reset
Series: SN74LS273
Factory Pack Quantity: 20
Supply Voltage – Min: 4.75 V
Width: 6.35 mm
Unit Weight: 1,199 g
آی سی 74LS273 شامل 8 فلیپ فلاپ نوع D می باشد.
