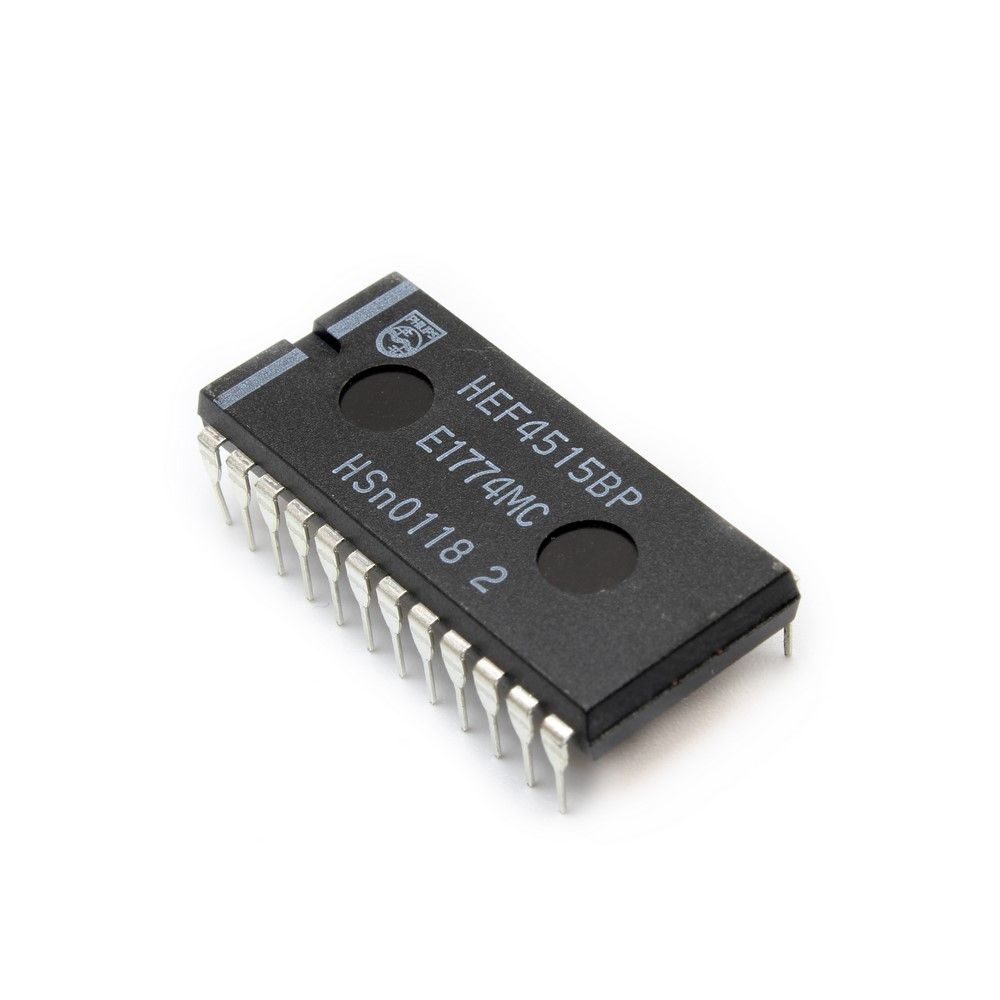

CD4515BCN – DIP

Product Category:Encoders, Decoders, Multiplexers & Demultiplexers
RoHS: Details
Product:Decoders / Demultiplexers
Logic Family:CD4000
Number of Bits:4 bit
Number of Input Lines:4 Input
Number of Output Lines:16 Output
Propagation Delay Time:370 ns
Supply Voltage – Min:3 V
Supply Voltage – Max:18 V
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 125 C
Mounting Style:SMD/SMT
Package / Case:SOIC-24
Packaging:Tube
Function:Latch/Decoder/Demultiplexer
Height:2.35 mm
Length:15.4 mm
Number of Circuits:1 Circuit
Operating Temperature Range:- 55 C to + 125 C
Series:CD4515B
Technology:CMOS
Width:7.52 mm
Brand:Texas Instruments
Logic Type:Decoders/Demultiplexers
Supply Current – Max:0.1 mA
High Level Output Current:- 1.5 mA
Low Level Output Current:1.5 mA
Maximum Clock Frequency:8 MHz
Operating Supply Voltage:3 V to 18 V
Product Type:Encoders, Decoders, Multiplexers & Demultiplexers
Factory Pack Quantity:25
Subcategory:Logic ICs
Unit Weight:0.022025 oz
