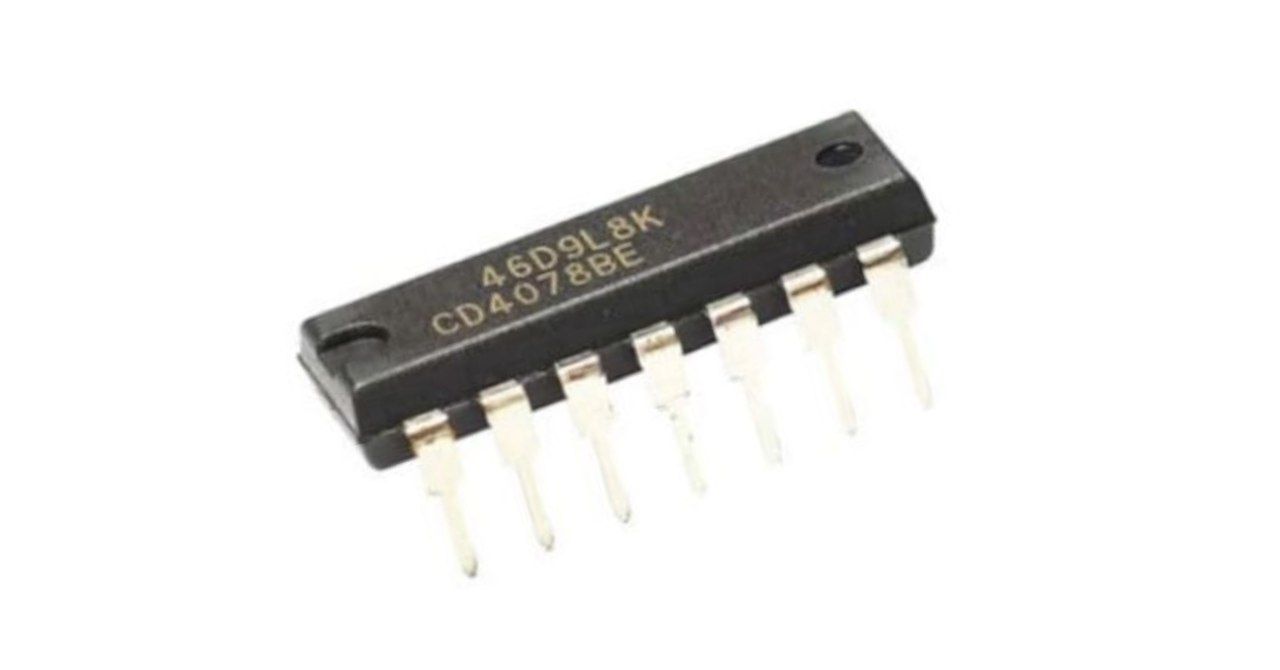

CD4078BE – DIP

Product Category:Logic Gates
RoHS: Details
Logic Function:MUX Gates
Logic Family:CD4000
Number of Gates:1 Gate
Number of Input Lines:8 Input
Number of Output Lines:2 Output
High Level Output Current:- 1.5 mA
Low Level Output Current:1.5 mA
Propagation Delay Time:150 ns
Supply Voltage – Max:18 V
Supply Voltage – Min:3 V
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 125 C
Mounting Style:SMD/SMT
Package / Case:SOIC-14
Packaging:Tube
Function:8-Input NOR/OR Gate
Height:1.58 mm
Input Type:CMOS
Length:8.65 mm
Operating Temperature Range:- 55 C to + 125 C
Output Type:CMOS
Quiescent Current:20 nA
Series:CD4078B
Width:3.91 mm
Brand:Texas Instruments
Logic Type:8-Input NOR/OR
Number of Bits:1 bit
Operating Supply Current:15 uA
Operating Supply Voltage:10 V
Product Type:Logic Gates
Factory Pack Quantity:50
Subcategory:Logic ICs
Unit Weight:0.004564 oz
