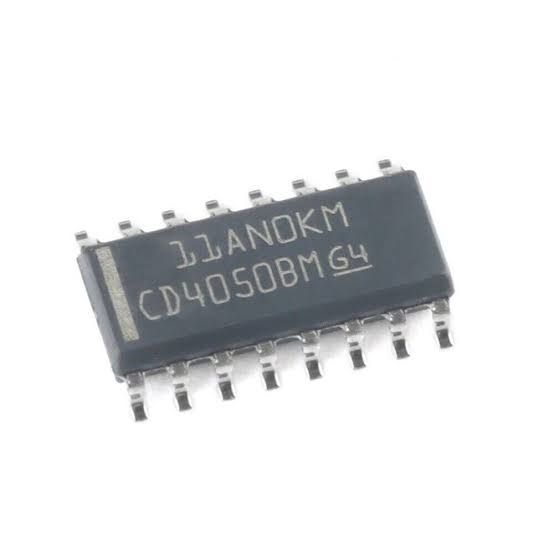

CD4050 smd
156,000ریال
Buffers & Line Drivers CMOS Hex Non-Invert Buffer/Conv
Product Category:Buffers & Line Drivers
RoHS: Details
Number of Input Lines:6 Input
Number of Output Lines:6 Output
Polarity:Non-Inverting
Supply Voltage – Max:20 V
Supply Voltage – Min:- 0.5 V
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 125 C
Mounting Style:SMD/SMT
Package / Case:SOP-16
Packaging:Cut Tape
Packaging:MouseReel
Packaging:Reel
Function:Buffer/Converter
Height:1.5 mm (Max)
Length:10 mm (Max)
Operating Temperature Range:- 55 C to + 125 C
Output Type:CMOS
Quiescent Current:40 nA
Series:CD4050B
Technology:CMOS
Width:4 mm (Max)
Brand:Texas Instruments
Logic Family:CD4000
Logic Type:CMOS
Number of Channels:6
Supply Current – Max:20 uA
High Level Output Current:- 5.2 mA
Input Signal Type:Single-Ended
Low Level Output Current:25 mA
Operating Supply Current:60 uA
Operating Supply Voltage:0.5 V to 5 V
Product Type:Buffers & Line Drivers
Propagation Delay Time:140 ns at 5 V, 80 ns at 10 V, 60 ns at 15 V
Factory Pack Quantity:2500
Subcategory:Logic ICs
Unit Weight:0.004938 oz
