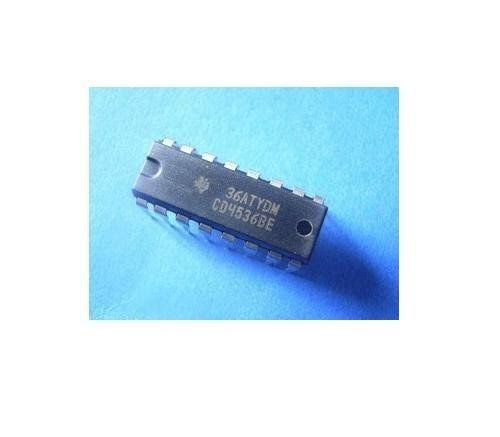

CD4536BE

Product Category:Timers & Support Products
RoHS: Details
Series:CD4536B
Type:Programmable
Number of Internal Timers:1 Timer
Supply Voltage – Max:18 V
Supply Voltage – Min:3 V
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 125 C
Mounting Style:Through Hole
Package / Case:PDIP-16
Packaging:Tube
Height:4.57 mm
Length:19.3 mm
Output Type:CMOS
Width:6.35 mm
Brand:Texas Instruments
Propagation Delay – Max:3000 ns
High Level Output Current:4 mA
Low Level Output Current:4 mA
Operating Supply Current:300 uA
Pd – Power Dissipation:500 mW (1/2 W)
Product Type:Timers & Support Products
Factory Pack Quantity:25
Subcategory:Clock & Timer ICs
Unit Weight:0.033510 oz
