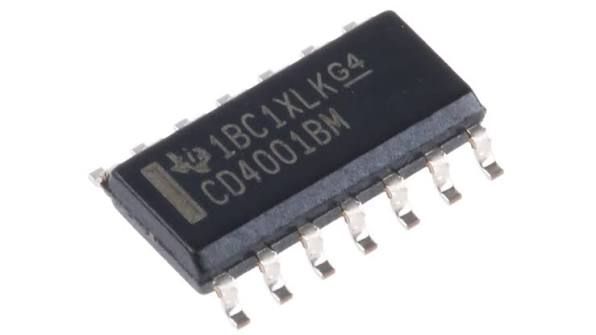

Product Category:Logic Gates
RoHS: Details
Product:Single-Function Gate
Logic Function:NOR
Logic Family:CD4000
Number of Gates:4 Gate
Number of Input Lines:2 Input
Number of Output Lines:1 Output
High Level Output Current:- 1.5 mA
Low Level Output Current:1.5 mA
Propagation Delay Time:120 ns
Supply Voltage – Max:18 V
Supply Voltage – Min:3 V
Minimum Operating Temperature:- 55 C
Maximum Operating Temperature:+ 125 C
Mounting Style:SMD/SMT
Package / Case:PDIP-14
Packaging:Tube
Function:NOR
Height:4.57 mm
Input Type:CMOS
Length:19.3 mm
Operating Temperature Range:- 55 C to + 125 C
Output Type:CMOS
Quiescent Current:20 nA
Series:CD4001B
Width:6.35 mm
Brand:Texas Instruments
Logic Type:2-INPUT NOR
Number of Bits:4 bit
Operating Supply Current:15 uA
Operating Supply Voltage:10 V
Product Type:Logic Gates
Factory Pack Quantity:25
Subcategory:Logic ICs
Unit Weight:0.032734 oz
